Overview

Basic Info.

Model NO.	SW-B
Inside Material	Carbon Steel,SUS201,SUS304,SUS316,Alloy Steel
Feature	Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant
Tensile Strength	Strong
Application	Food , Automotive, Pharmaceutical, Chemical,Mining
Usage	Textile,Glass,Electronics,
Advantage	High Strength,Good Durability,Heat Resistance
Special Feature	High Precison,Corrosion Resistance,Easy to Clean
Customized	Ok
Transport Package	Wood Carton
Specification	Width: 200-3600mm, edge finish: wedled
Trademark	SW
Origin	China
HS Code	7314120000

Packaging & Delivery

Package Size80.00cm * 40.00cm * 30.00cm Package Gross Weight35.000kg

Product Description

Stainless steel mesh woven conveyor belt
There's several kinds of mesh belt, for different type having different usage.

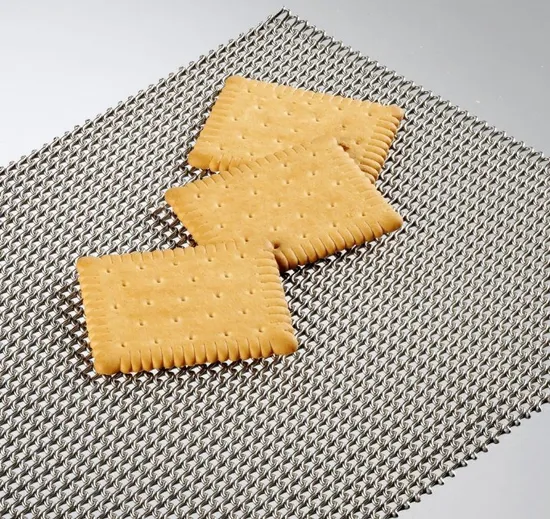

First kind: Stainless steel composite woven balanced mesh belt
Right hand and left hand form a very dense and smooth surface, most of the shank is straight and small is crimped. Because of the high dense mesh surface,so this kind belt is perfect for conveying small things, such as nuts, bolts,screws,biscuits,chemical grains etc.

Specification

Second kind: Stainless steel spiral grid chain mesh conveyor belt

The spiral grid chain mesh conveyor belt' spiral is made by high tensile strength wire,the wire is resistance to deformation, so the belt can withstand high pressure and stress. Smooth belt surface and solid welding,the belt can run straightly and can be bent by 180,360 degree.


Specification

The third kind: Stainless steel flat flex wire mesh conveyor belt

The material is high tensile stainless steel wire,a single layer structure,driven by sprocket. Edge finish can be single loop and special can be double loop. Flex wire belt mostly used in linear conveyor, can be used to turn conveyor,too. The structure can be single small size and double small side. The flat flex belt can run straightly and curve turning in 90,180 degree.

Specification

The fourth kind: Ultra-thin flat mesh belt for rolling baking

The rolled baking conveyor belt is made to meet special usage of baking industry. This kind conveyor belt is light weight, small size,thin, low heat inertia, good air circulation,high quality,high strength. Edge finish can be loop or welded, this kind edge have great flexibility and better contact with drums even if small diameter. This kind edge finish prevents belt to be damaged from side guards and blades. Innovative producing way provides a perfect alignment of the wire for larger open space in the mesh for the same strength. The provides quick and even baking and helps to keep the belts clean.

Specification

The fifth kind: Balanced weaving stainless steel mesh conveyor belt

Balanced weaving belt are formed by left and right spiral and assembled by rod. Drag or flat spiral type is available,driven based on friction, large enough driving roller is required, customized sprocket cab be used as positive-drive,allowing sprocket engages the mesh of belt. Select appropriate pitch and pitch, the edge of the mesh belt is usually welded or crimped. Belts join using crimped rod. The crimped rod ensures all spirals in the correct positions to avoid distortion and stretching.

Specification

The sixth kind: stainless steel chain plate conveyor belt

Chain plate conveyor belt is a solid belt ,made of metal perforated plate and driven by sprocket. It's perfect for conveying small and high density products, easy to maintain,durable. The belt self-supporting structure of plate belts mean they can be used in large width without support.
Perforations allow opening in the plate according to the application. The chain plate belt design can add side guard on the two edge of the mesh belt and cross flight in the middle of the mesh surface.

Specification

The seventh kind: Stainless steel flat wire mesh conveyor belt
The flat plate wire mesh conveyor belt is made of cross rod and tread strip. The belt edge finish can be welded or closed edge. Two side guards and flight can be available. It's easy to maintain can clean,the life is perfect if used correctly.

Specification

The eighth kind: Food grade wire eye link conveyor belt

The wire eye link conveyor belt's wire is formed into eye link shape and joined with the rod. High tensile strength of wire ring mesh belt, it's more durable. The belt edge can be finished by assembling with the reinforced plate or the chain. Specification

The ninth kind: Stainless steel conventional weave belt

Conventional weave belt is consisted of single directional spirals inter-woven into the preceding spirals. The advantage of the mesh are as follows: flexibility, smooth running, large opening, good air circulation, easy installation, maintain and repair, frequently used for food processing and electronic conveying etc.

Specification

Stainless steel wire mesh conveyor belt mainly used in transport, cooking, heating, drying, cooling, coating, freezing,baking, shrink wrapping, etc food industry.
